Bartell

BR1570 Reversible Compactor

$3,435.00

If you’re upgrading from a forward-only plate or need precision in confined work zones, the BR1570 offers a clear advantage. With rugged construction, versatile hydraulic controls, and jobsite-friendly mobility, this reversible compactor punches well above its size.

Maximize your compaction efficiency today—choose the BR1570 and experience professional-grade results in every pass.

Add to compare
Add to wishlist
SKU: BR1570H Category:
Description

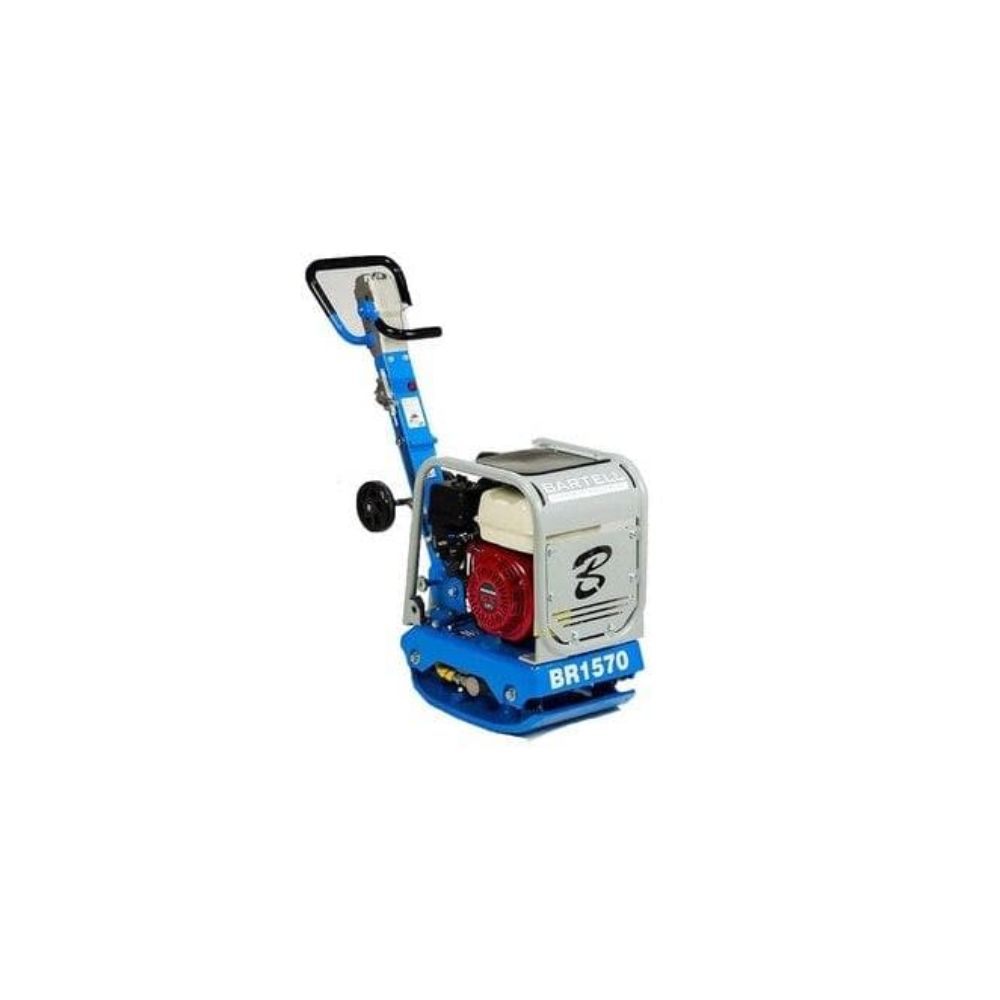

Bartell BR1570 Reversible Plate Compactor – Small Size, Serious Power

The Bartell BR1570 is the most compact and cost-effective reversible compactor in Bartell’s lineup, yet it packs impressive performance. With a fully hydraulic reversing mechanism, this unit moves forward, backward, or stays in place—giving you complete compaction control without unnecessary repositioning.

Despite its compact 14″ plate width, the BR1570 delivers 3,461 lbf of compaction force, making it perfect for tight trenches, pavers, and patchwork. Powered by a trusted Honda GX160 engine, it provides reliable performance with lower emissions and minimal maintenance.

Key Features

  • Hydraulic Reversing System: Switch direction instantly for better control and smoother workflow in tight or awkward spaces.

  • Compact Yet Capable: Just 14 inches wide but still strong enough for trench, slab, or patch compaction.

  • Honda GX160 Engine: Delivers 4.8 HP of consistent power with a four-stroke design for greater fuel efficiency and quieter operation.

  • Tough Build: A ductile iron base, full roll cage, and aluminum belt cover protect essential parts during jobsite use.

  • Built-in Mobility: Flip-down wheels and an integrated lifting bale make transporting this unit fast, safe, and effortless.

  • Paver Protection Option: Add an optional urethane mat to safely work on pavers or decorative surfaces without leaving marks.

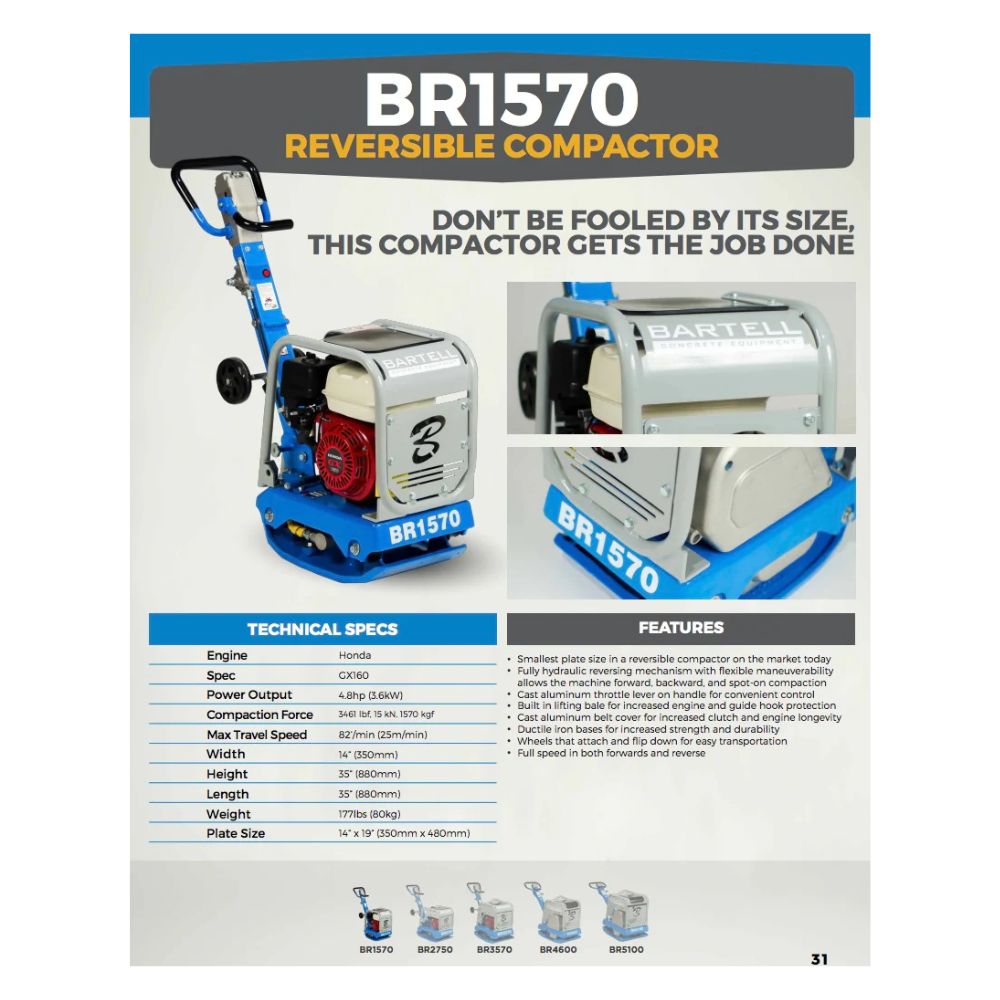

Technical Specifications

Specification Value
Engine Honda GX160 (4.8 HP / 3.6 kW)
Plate Size 14″ × 19″ (35 cm × 48 cm)
Compaction Force 3,461 lbf / 15 kN / 1,570 kgf
Max Travel Speed 65 ft/min (20 m/min)
Dimensions (L×W×H) 35″ × 14″ × 35″
Weight 210 lbs. (95 kg)
Reversible Operation Hydraulic (Forward / Reverse)
Frame Features Roll cage, cast-aluminum guards
Mobility Features Flip-down wheels, lift bale

Ideal Applications

This compact reversible compactor works great for trench backfill, asphalt patching, slab prep, paver install, and narrow jobsite work. Because of its maneuverability, it’s especially useful around tight corners, utilities, or structures.

Why Choose the BR1570?

Compared to single-direction plates, the BR1570 increases efficiency and reduces fatigue—no more stopping to reposition for reverse travel. It handles multiple material types, offers better compaction control, and reduces damage risk to sensitive surfaces.

Maintenance Made Easy

  • Daily: Check for leaks, loose bolts, and inspect belt tension.

  • Every 25 Hours: Change oil and clean or replace the air filter.

  • Weekly: Inspect the clutch, belt, and clean the base plate.

  • Long-Term: Grease moving parts and check wheel operation for smooth mobility.

Additional information
Weight 480 lbs
Dimensions 39 × 31 × 46 in
Engine Type

Honda GX160
Power Output

4.8hp (3.6kW)
Compaction Force

3461 lbf, 15 kN, 1570 kgf
Max Travel Speed

65'/min (20m/min)
Length

35" (88cm)
Width

14" (35cm)
Height

35" (88cm)
Weight

210 lbs. (95kg)
Plate Size

14" x 19" (35cm x 48cm)
Mobility

Flip-down wheels, integrated lifting bale
Construction

Ductile iron, aluminum guards, roll cage
Reversible

Full hydraulic forward/reverse/spot
